SMC Somaloy Soft Magnetic Composite for BLDC Motors

Place of Origin : China

MOQ : 500

Type : Soft Magnetic Composite

Composite : Ferrite Magnet

Shape : Customized

Tolerance : ±10%, Standard Tolerance

Processing Service : Moulding

Grade : Somaloy 500 1P/700 1P/700 3P/1000 3P

Density : 7.4g/cm3

Coating : insulating layer

Processing : Pressing

Magnetic Properties : Improved, 3D flux paths

Material Composition : Iron powder particles

Production Method : Powder metallurgy

Eddy Current Loss : Lower at high frequencies

Power Density : High by 3D magnetic flux

Design Flexibility : Complex shapes possible

Contact Now

Product Description
  • Soft magnetic composites (SMCs) are emerging as a new option to improve motor performance and design in various industries. Next generation motors are being designed using soft magnetic composites (SMCs) including improved magnetic properties, 3D flux paths, and custom geometries.
  • SMC materials are made of iron powder particles coated with an electrically insulating layer and can be formed into complex shapes by means of powder metallurgy, thereby allowing three-dimensional magnetic circuit design.

Applications

Automotive

  • Traction motors
  • Air conditioning compressors
  • Pumps (cooling, oil, etc.)
  • DC/DC converters
  • On-vehicle chargers

Industrial

  • Air conditioning compressors
  • Ventilation fans
  • Solar power
  • Industrial motor drives
  • Off-board battery charging
Advantages
  • Compact design – both size and weight of the components can be reduced
  • High performance – can meet the highest efficiency requirements
  • Excellent cost efficiency – the compact designs require less material and enable simple net shaping production process with minimum waste and reduced need for subsequent operations.
  • High power density by 3D magnetic flux.
  • Lower eddy current losses at high frequencies compared with lamination steel.
  • Complex shapes can easily be made, which opens a wide scale for product design.
  • Save copper, Quick response, Fast and accurate drive, High-intensity operations.

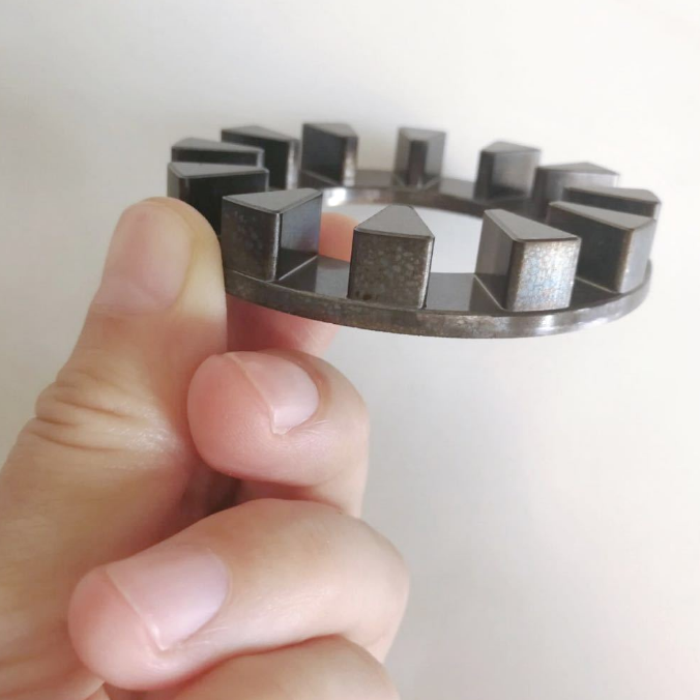

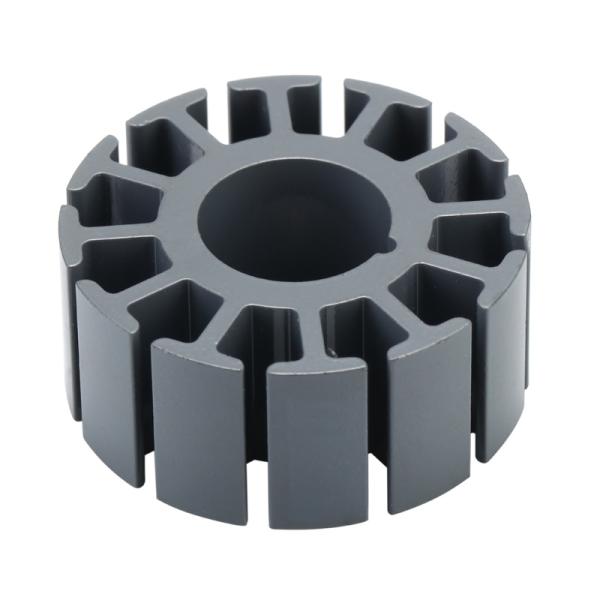

Product Showcase

SMC Somaloy Soft Magnetic Composite for BLDC Motors

SMC Somaloy Soft Magnetic Composite for BLDC Motors

SMC Somaloy Soft Magnetic Composite for BLDC Motors

Other Products

SMC Somaloy Soft Magnetic Composite for BLDC Motors

Company Information

SMC Somaloy Soft Magnetic Composite for BLDC MotorsSMC Somaloy Soft Magnetic Composite for BLDC Motors

Buyer Guide

1. We will help you with your order. Usually we ask for the following information.
A.
1). Product material,size, grade, surface coating, quantities required. etc..if available, a sketch or drawing with dimensions and tolerances.
2). Delivered magnetized or unmagnetized? Magnetization direction?
3). Information on what you want to use the magnet for?

2. Can you do OEM and ODM?
A. OEM and ODM are acceptable. You can inform us of your requirements for reference.

3. What about the sample lead time and charge?
A. If OEM or ODM, it will take about 1-2 weeks for our factory to calculate the charge. If items are available or in stock, it will be 5-10 days to be sent. The charge depends on your final confirmation of the draft.

4. How can I place an order?
A: You can contact us by email about your order details, or place order on line.

5. What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr-epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 15-25 days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.

6. How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using, L/C, D/A and D/P are also available.

7. Can we visit your factory?
A: Visiting our factory is high appreciated. We will send you the invitation as you make sure of the schedule.
